Informasi Produk

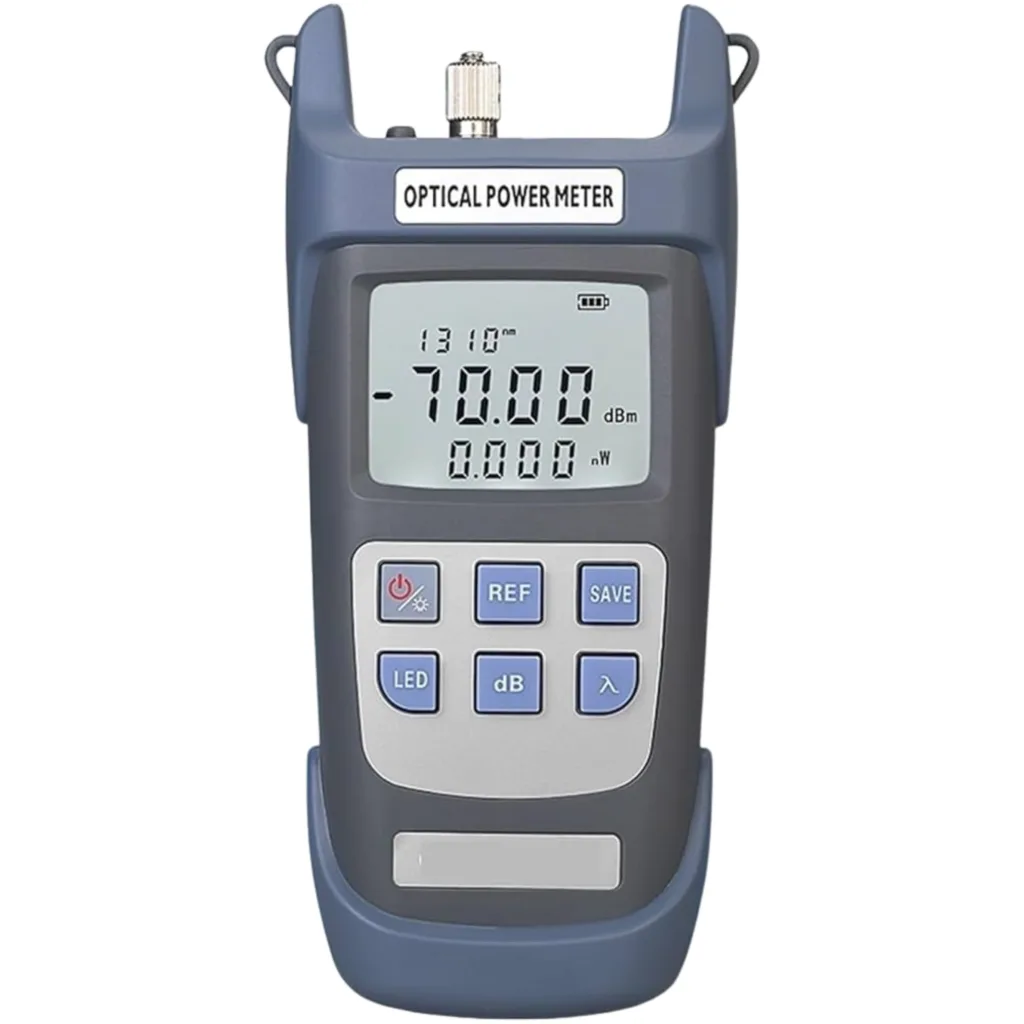

F-OPM series are controlled by single-chip microprocessor but multifunction. The body design meets the functional requirements of human body and adopts advanced thermal molding technology, which is beautiful and durable. It can be well protected by using embedded detector and laser. The whole machine has automatic shutdown function, three VFL modes, backlight display, wavelength memory function, user calibration, wide test range functions.
Product Specification
| Fitur | Spesifikasi |
| Type | OPM-SE |
| Identify wavelength range | 800-1700nm |
| Output Power | ≤-5dBm |
| Power Range | 0~6dB |
| Power Step | ≤ -5dBm |
| Working mode | +0.2dB/15min (After 15 minutes of preheating) |
| Stability | CW/270Hz/330Hz/1kHz/2kHz/ID/TWINS |
| Optical connector | FC/SC |
| Display | Segment code screen |
| Power Supply | Rechargeable Li-battery; 1500mAh |
| Automatic shutdown time | 10min/30min/60min/120min |
| Battery duration | ≥24h |
| Operating temperature | -10°C~+50°C |
| Storage temperature | -40°C~+70°C |
| Relative humidity | 0~95% No condensation |
| Weight | 235g |
| Dimensions | 140mm x 32mm x 73mm |
