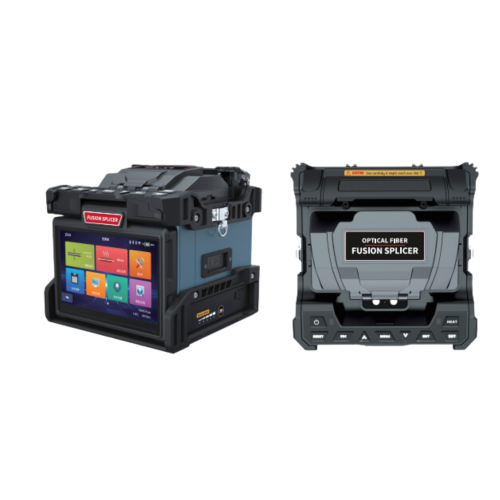

| Type | FS-200 |
| Motor | 4 Motor |
| Display Magnification | 420x |
| Discharge Correction | Real time Discharge Correction (Manually available) |
| Extension Module | OPM/VFL/OTDR/10GPON |
| Clamps | Metal five in one fixture |
| Backlit Button | Key Backlight design to assist night construction |
| Fiber Holder | Five-in-one multifunctional fixture, supports SOC options |
| Applicable Fiber Type | Include G651, G652, G653, G655, G657 |
| Fiber Cut Length | 8-16mm |
| Splice loss | SM:0.02dB, MM:0.01dB, NZ:0.03dB, NZDS:0.04dB |
| Electrode life | ≥5000 times |
| Splice mode | 500 preset welding programs |
| Heat mode | 200 preset heating programs |
| Automatic heating | Support |
| Splice time | Standard fusing time 7s, fast fusing mode 6s |
| Heat time | Standard heating time is 18 seconds, time adjustable |
| Return loss | ≥60dB |
| Splice protector | 60mm, 50mm, 40mm, 30mm, 25mm |
| Fiber tensile test force | Tensile force is 1.96N~2.1N |
| Storage | Can store about 2000 images and 20000 sets of data |
| Interface | GUI graphical operator interface with graphical maintenance navigation |
| Battery capacity | 6200mAh, built-in charging, Supports up to 420 fusion heating cycles |
| Altitude | Can work at an altitude of 0 meters to 5000 meters |
| Input/Output | AC100~240V, DC15~19V |
| Boot time | 3 seconds fast boot |
| Display | 5-inch high-definition capacitive touch screen, button/touch dual control |
| Interface | Type-C, USB2.0 (can be used to export data) |
| Size & weights | 150mm*146mm*145mm, 1.88kg (with battery) |
